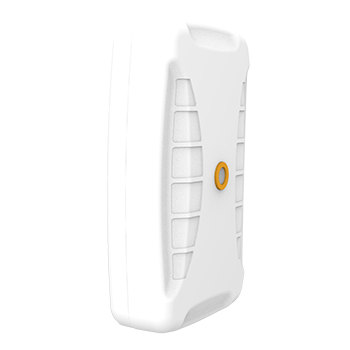

The Poynting XPOL-24 puts four cross-polarised elements in a single directional panel, so a 4×4 MIMO router at the edge of coverage gets its full antenna set from one mount and one aim. It is the natural partner for 5G routers on rural sites, masts and buildings where the serving mast is fixed.
Coverage is 617–960 and 1710–4200 MHz with up to 11 dBi gain, taking in every Irish 4G and 5G band including 3.6 GHz. The IP65 housing is rated for −40 °C to +80 °C and the pole or wall bracket is included.

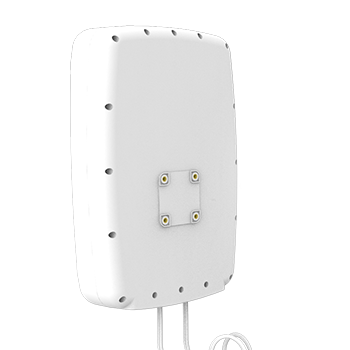

The -01 version has four SMA male connectors on 5 m HDF-195 cables; the -02 has N-type bulkheads for your own cable run. The optional BRKT-62 swivel bracket makes fine aiming easier.
Choose the model
| Model | Connector | Cable | Order code |
|---|---|---|---|
| XPOL-24 -01 | SMA male × 4 | HDF-195, 5 m | A-XPOL-0024-V1-01 |
| XPOL-24 -02 | N-type female bulkhead × 4 | None | A-XPOL-0024-V1-02 |
Which model?
- XPOL-24: for 4×4 routers such as the Teltonika RUTX50, Robustel R5030, R5020, R5020 Lite or R5010.
- 2×2 router? Use the XPOL-2-5G instead.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting XPOL-24 technical specification (PDF) · XPOL-24 user guide (PDF)
