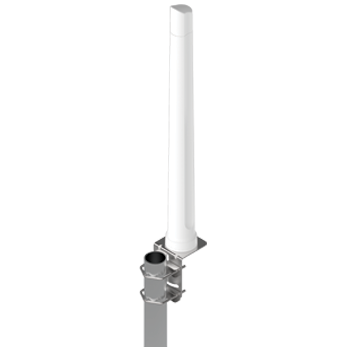

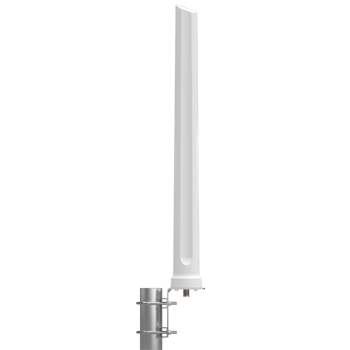

Poynting OMNI-293 High-Gain 5G Omni Antenna

The Poynting OMNI-293 is the 5G successor to the OMNI-292: the same 8 dBi high-gain omni, now covering 617–6000 MHz. That takes in every Irish 4G and 5G band including 3.6 GHz, plus 2.4 and 5 GHz Wi-Fi, so it is the mast omni for rural sites, yards and containers where reach matters.

The IP65 radome is rated for −40 °C to +80 °C and a 316 stainless L-bracket for poles up to 50 mm or a wall is in the box. It is a single-port antenna; two on the BRKT-33 bracket make a 2×2 pair, four make a 4×4 set. The OMNI-493 is the marine version of the same antenna.

It has an N-type bulkhead connector, so it needs an N-to-SMA cable to the router; we supply Poynting HDF-195 low-loss cables in 3, 5, 8 and 10 m (ask when ordering).

Choose the model

Which model?

• One antenna: single-port gateways and 5G RedCap devices.
• A pair: two-port routers such as the Advantech ICR-2734A02, Robustel R1510 or Teltonika RUT956.
• 4G only and budget-led? The OMNI-292.
• Boat or coast? The OMNI-493.

Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.

Datasheets

Poynting OMNI-293 technical specification (PDF) · OMNI-293 user guide (PDF)
