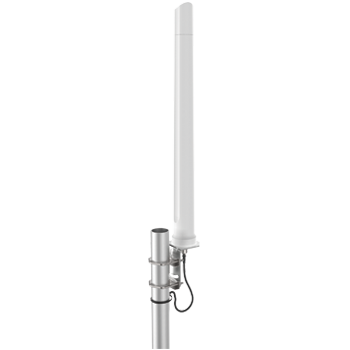

The Poynting OMNI-292 is a high-gain mast omni for 4G sites that need reach rather than 5G bands. One element gives 8 dBi across 617–960 and 1710–2700 MHz, which also takes in 2.4 GHz Wi-Fi, so it suits long-range 4G links, containers, yards and rural gateways.
The IP65 radome is fire resistant and rated for −40 °C to +70 °C, and a stainless mount for poles up to 50 mm or a wall is included. For a 2×2 pair, two antennas fit the BRKT-33 bracket.
It has an N-type bulkhead connector, so it needs an N-to-SMA cable to the router; we supply Poynting HDF-195 low-loss cables in 3, 5, 8 and 10 m (ask when ordering).
Choose the model
| Model | Connector | Cable | Order code |
|---|---|---|---|
| OMNI-292 | N-type female bulkhead | None | A-OMNI-0292-V2 |
Which model?
- One antenna: single-port 4G gateways and modems.
- A pair: two-port routers such as the Advantech ICR-2734A02, Robustel R1510 or Teltonika RUT956.
- Need 3.6 GHz 5G? The OMNI-293 covers 617–6000 MHz at the same gain.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting OMNI-292 technical specification (PDF) · OMNI-292 user guide (PDF)
