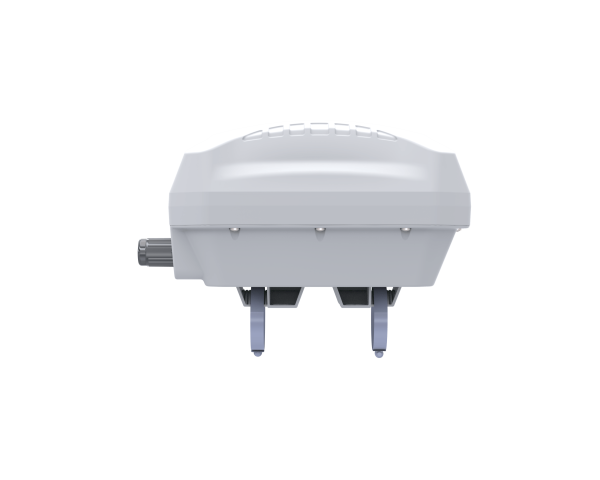

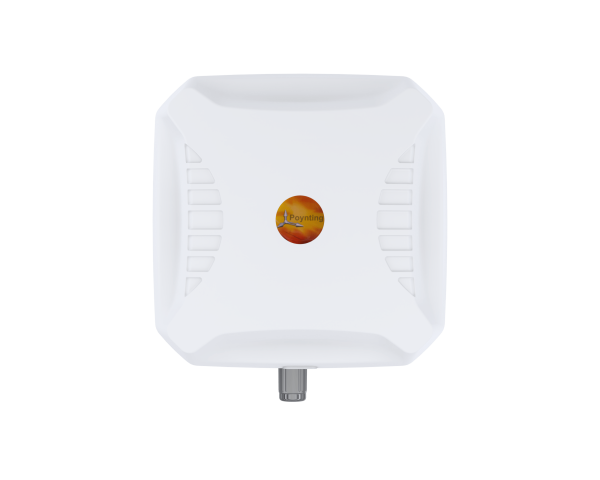

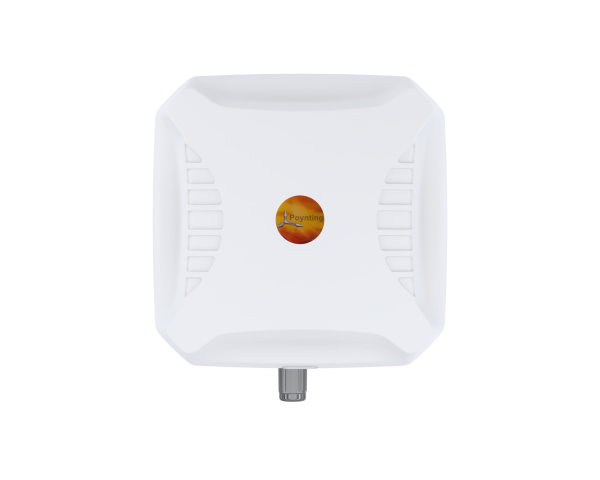

The Poynting EPNT-2 is the coverage-edge version of the ePoynt idea: a directional antenna with the router bay built in. Two high-gain directional elements aim at a distant mast while two omni elements pick up the rest, giving a 4×4 router its full set, or two 2×2 routers one each, with the radio right behind the antenna and no cable loss.

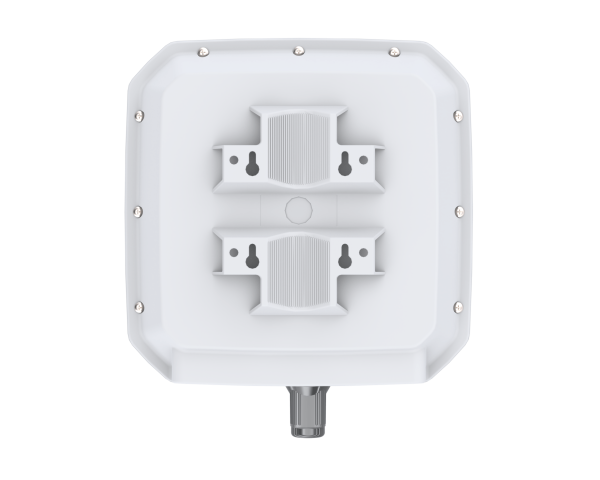

The directional elements give 11 dBi and the omnis 5 dBi across 617–960 and 1710–4200 MHz, which covers the Irish 4G and 5G bands. Two further elements give 2×2 Wi-Fi on 2.4 and 5 GHz. The housing is IP65 and mounts on a pole, wall or window.
This is the V3 version. Routers up to 185 × 145 × 45 mm fit the bay; fly leads are SMA male. The BRKT-62 swivel bracket is optional for fine aiming.
Choose the model
| Model | Cellular | Wi-Fi | Order code |
|---|---|---|---|
| EPNT-2 V3 | 4 × SMA (2 directional, 2 omni) | 2 × SMA | A-EPNT-0002-V3-01 |
Which model?
- EPNT-2: remote sites with one known mast and a 4×4 router such as the Teltonika RUTX50, or two-port routers such as the RUT956.
- No fixed mast, or a moving site? Use the omni EPNT-1 (same bay) or the compact EPNT-4.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting EPNT-2 V3 technical specification (PDF) · ePoynt user guide (PDF) · ePoynt router compatibility list (PDF)
