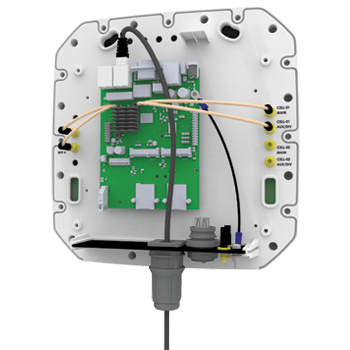

The Poynting EPNT-1 is the omni member of the ePoynt family: an antenna housing with a router bay inside, so the router mounts at height behind the elements and the coax loss goes away. With no aiming needed it suits sites served by more than one mast, cellular Wi-Fi access points and anywhere the router has to live outdoors.

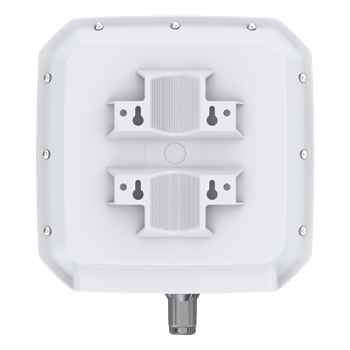

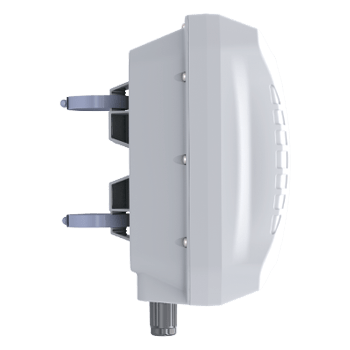

Four cross-polarised cellular elements cover 617–4200 MHz for 4×4 MIMO at 3.8 dBi, and two dual-band Wi-Fi elements cover 2.4 GHz and 5–7.2 GHz. The housing is IP65, rated for −40 °C to +80 °C, and mounts on a pole, wall or window.
This is the V2 version. Routers up to 185 × 145 × 45 mm fit the bay; fly leads are SMA male. The BRKT-62 swivel bracket is optional.
Choose the model
| Model | Cellular | Wi-Fi | Order code |
|---|---|---|---|
| EPNT-1 V2 | 4 × SMA | 2 × SMA | A-EPNT-0001-V2-01 |
Which model?
- EPNT-1: 4×4 routers such as the Teltonika RUTX50 or Robustel R5020, where the serving mast is not fixed.
- One distant mast? The EPNT-2 adds 11 dBi directional elements in the same bay.
- Smaller router, or GPS needed? The EPNT-4.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting EPNT-1 V2 technical specification (PDF) · ePoynt user guide (PDF) · ePoynt router compatibility list (PDF)
