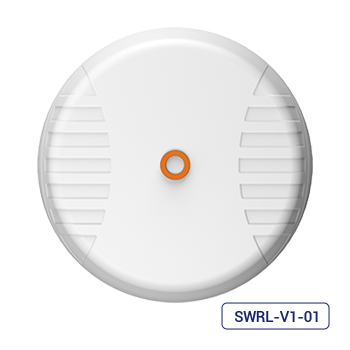

The Poynting SWIRL is a low-profile multi-MIMO array for yachts, workboats, trains and vehicles that need more than one 5G router or a full 8×8 set. Cross-polarised elements are arranged around a cast aluminium base so every element sees the horizon, and Wi-Fi and dual-band GNSS are built into the same 382 mm housing.
Cellular elements cover 617–6000 MHz at 6 dBi. The housing is IP69K, E-Mark approved for vehicles and saltwater and UV proof, rated for −40 °C to +80 °C. The CPE versions add the SWIRL-BASE, a router compartment under the array that takes routers up to 231 × 193 × 50 mm or 293.5 × 148.5 × 50 mm.

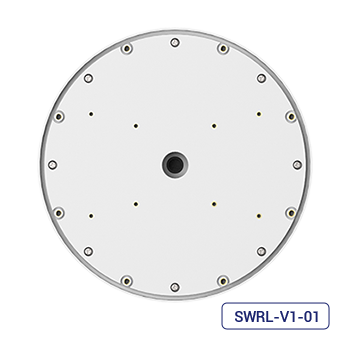

Mounting is adhesive or through the pre-drilled base; the MBK-5 magnet set and BRKT-92 316 stainless bracket are optional.
Choose the model
| Model | Cellular | Wi-Fi | GNSS | Router base | Order code |
|---|---|---|---|---|---|
| SWIRL-4 | 4×4 | Dual-band | Yes | – | A-SWIRL-0004-V1-01 |
| SWIRL-8 | 8×8 (2 × 4×4) | 4×4 | Yes | – | A-SWIRL-0008-V1-01 |
| SWIRL-4-CPE | 4×4 | Dual-band | Yes | Yes | A-SWIRL-0004-V1-02 |
| SWIRL-8-CPE | 8×8 (2 × 4×4) | 4×4 | Yes | Yes | A-SWIRL-0008-V1-02 |
Which model?
- SWIRL-4: one 4×4 router such as the Teltonika RUTX50 or Robustel R5030.
- SWIRL-8: two 4×4 routers for bonded or dual-operator links.
- CPE versions: when the router should live in the antenna base, out of the cabin.
- Simpler vehicle job? The MIMO-3 or MIMO-4 roof antennas.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting SWIRL-8 technical specification (PDF) · SWIRL user guide (PDF) · SWIRL-4-CPE product page (PDF) · SWIRL-8-CPE product page (PDF)
