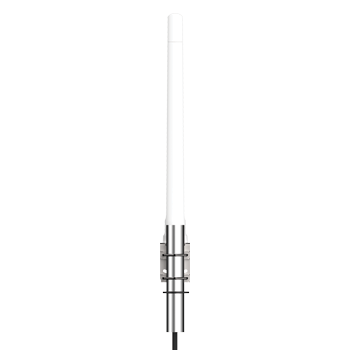

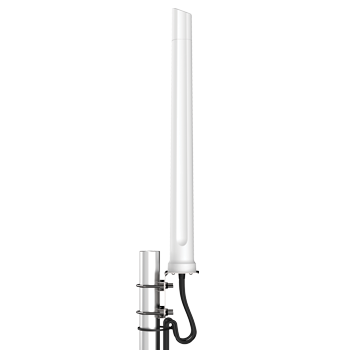

The Poynting OMNI-214 gives a 4×4 MIMO router its full antenna set from one mast omni: four vertically separated elements in a single radome, with no aiming. It is the fixed-site answer where the serving mast is not known or may change and a directional XPOL-24 would be too narrow.
Coverage is 617–3800 MHz at 3.5 dBi, which includes every Irish 4G and 5G band. The IP65 radome is rated for −40 °C to +80 °C and the stainless mount for poles up to 50 mm or a wall is included.
Four SMA male connectors on 2 m HDF-195 cables plug straight into the router.
Choose the model
| Model | Connector | Cable | Order code |
|---|---|---|---|
| OMNI-214 | SMA male × 4 | 2 × twin HDF-195, 2 m | A-OMNI-0214-V1-01 |
Which model?
- OMNI-214: 4×4 routers such as the Teltonika RUTX50, Robustel R5030, R5020, R5020 Lite or R5010.
- Two-port router? The OMNI-600-5G.
- Boat? The marine OMNI-414.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting OMNI-214 technical specification (PDF) · OMNI-214 user guide (PDF)
