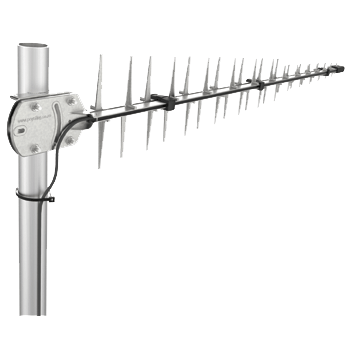

The Poynting LPDA-92 is a wideband log-periodic directional antenna for fixed sites that need high gain on a budget. It is a single-polarisation antenna, so one LPDA-92 feeds one router port; for 2×2 MIMO you fit a pair on the BRKT-33 bracket, which angles them at ±45°.
It covers 698–3800 MHz, the Irish 4G bands plus 3.6 GHz 5G, with 11 dBi gain. The IP65 housing is fire resistant and rated for −40 °C to +70 °C, and it pole mounts with the supplied hardware.
We stock the single antenna with a 7 m HDF-195 cable and the LTE kit, which is two antennas with the BRKT-33 bracket. Two kits give a 4×4 set.
Choose the model
| Model | What you get | Cable | Order code |
|---|---|---|---|
| LPDA-92 | One antenna | HDF-195, 7 m | A-LPDA-0092 |
| LPDA-92 LTE kit | Two antennas + BRKT-33 ±45° bracket | HDF-195, 7 m each | A-LPDA-0092-LTE |
Which model?
- Single: single-port modems and gateways.
- LTE kit: two-port routers such as the Advantech ICR-2734A02, Robustel R1510 or Teltonika RUT956.
- Need Wi-Fi 6E too? The LPDA-500 runs to 7200 MHz.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting LPDA-92 technical specification (PDF) · LPDA-92 user guide (PDF)
