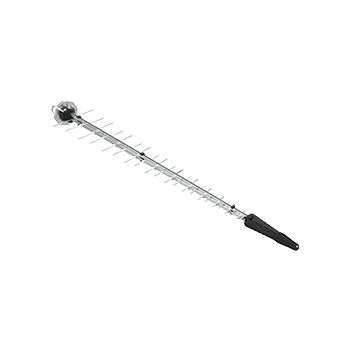

The Poynting LPDA-500 is an ultra-wideband directional antenna that covers 617–7200 MHz, so the same antenna works for 4G, 5G and Wi-Fi up to 6E. It suits fixed-wireless links, point-to-point Wi-Fi and 5G sites where one directional antenna design has to serve several radios.

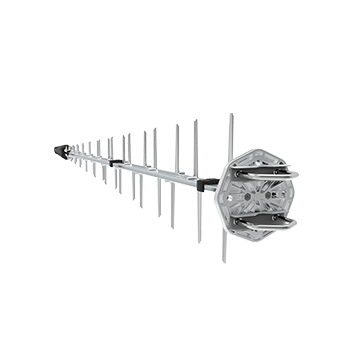

Gain is 11 dBi. The IP65 housing is fire resistant and rated for −40 °C to +80 °C. The adjustable pole or wall bracket turns in 45° steps, so a pair can be set vertical and horizontal or at ±45° for 2×2 MIMO.
It has an N-type bulkhead connector, so it needs an N-to-SMA cable to the router; we supply Poynting HDF-195 low-loss cables in 3, 5, 8 and 10 m (ask when ordering).
Choose the model
| Model | Connector | Cable | Order code |
|---|---|---|---|
| LPDA-500 | N-type female bulkhead | None | A-LPDA-0500-V1-01 |
Which model?
- One per port: a pair for two-port routers such as the Advantech ICR-2734A02, Robustel R1510 or Teltonika RUT956, or for a 2×2 Wi-Fi link.
- 4G-only site? The LPDA-92 is the lower-cost option.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
Datasheets
Poynting LPDA-500 technical specification (PDF) · LPDA-500 user guide (PDF)
