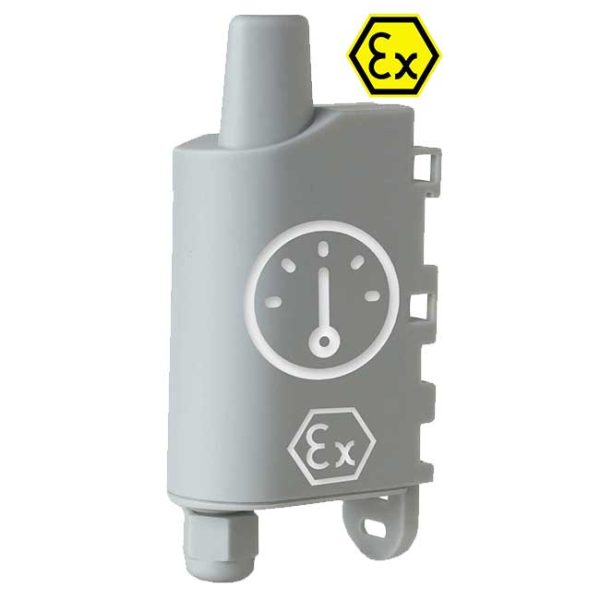

The Adeunis PULSE ATEX reads gas meters and other pulse-output equipment in hazardous areas and sends consumption over LoRaWAN. Use it for gas metering in plant rooms, boiler houses and industrial sites, or to count machine cycles for maintenance planning where explosion protection is required.
It is certified ATEX II 2 G D (Ex ib IIC T4 Gb, Ex ib IIIC T135°C Db) for gas Zone 1 and dust Zone 21. It connects up to two meters and reports the index, minimum and maximum flow, with alarms for flow thresholds, leaks and tampering. Data logging, redundancy and timestamps are built in. The IP67 housing runs from a soldered battery; Adeunis quotes over 10 years at SF7 with one frame an hour.
| Version | Part |
|---|---|
| PULSE ATEX | ARF8230FA |
| PULSE ATEX + Binder connector | ARF8230FA-B01 |
| PULSE ATEX + Gazpar connector | ARF8230FA-B02 |
Installation in an ATEX zone must follow Adeunis’s ATEX recommendations and be carried out by a qualified installer.
