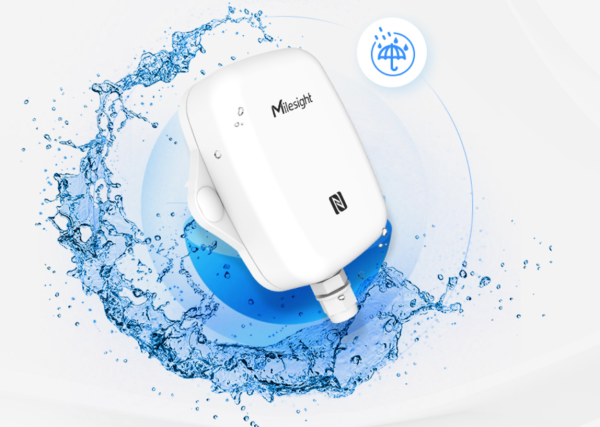

Milesight EM300-DI LoRaWAN Pulse Counter

The Milesight EM300-DI is a compact LoRaWAN® pulse counter that transforms traditional pulse-output meters into smart wireless meters. It is designed to remotely read metering data and transmit it over a LoRaWAN® network, helping businesses, facilities managers, and building operators improve monitoring without replacing existing metering infrastructure.

Milesight describes the EM300-DI as a LoRaWAN® pulse counter used to remotely read metering data from water meters, turning traditional water meters into smart meters via a LoRaWAN® network. It supports reed switch meters and other passive pulse meters, making it useful for smart water metering and wider pulse-counting applications.

For Irish facilities management and smart building projects, the EM300-DI is especially useful where teams need to monitor water usage, utility consumption, equipment status, or meter pulses across distributed sites. It can reduce the need for manual readings and provide better visibility through a Milesight LoRaWAN gateway and cloud dashboard.

The EM300-DI supports both pulse counter and digital input work modes, with a GPIO dry contact interface, input frequency up to ≤ 2000 Hz, and minimum pulse width of 250 μs. Milesight also lists built-in temperature and humidity sensing, allowing the device to provide additional environmental monitoring alongside pulse-counting data.

The product is compatible with Milesight LoRaWAN gateways and the Milesight Development Platform for remote monitoring and visualised smart data management.

TITAN can supply the Milesight EM300-DI nationwide across Ireland as a standalone sensor or as part of a complete Milesight LoRaWAN monitoring solution, including gateway selection, configuration, cloud dashboard setup, and deployment support.

---

Key Features

• LoRaWAN® pulse counter for smart metering applications
• Converts traditional pulse-output meters into remotely monitored smart meters
• Suitable for water meters, reed switch meters, and passive pulse meters
• Supports pulse counter and digital input work modes
• 1 × GPIO interface with dry contact input
• Input frequency: ≤ 2000 Hz
• Minimum pulse width: 250 μs
• Built-in temperature and humidity sensing
• IP67-rated enclosure for demanding environments
• Local data storage, retransmission, and retrievability
• NFC configuration via mobile app
• Milesight D2D support
• Water flow / outage alarm support
• Temperature threshold alarm support
• Compatible with Milesight LoRaWAN gateways and Milesight Development Platform
• Long battery life depending on configuration and reporting interval
• Nationwide supply and support across Ireland from TITAN

---

Irish Use Cases

Facilities Management

The EM300-DI helps facilities teams remotely monitor water meters and other pulse-output devices across commercial buildings, campuses, estates, and multi-site operations. This reduces the need for manual readings and provides better usage visibility.

Smart Buildings

For smart building projects, the EM300-DI can connect existing pulse-output meters into a Milesight LoRaWAN monitoring network. This allows building managers to collect meter data remotely and view it through a cloud dashboard.

Water Meter Monitoring

The EM300-DI is particularly suited to water metering applications. It can help monitor water usage, support leak detection strategies, and improve visibility of consumption across facilities or remote locations.

Utility & Equipment Monitoring

Because the EM300-DI supports pulse counting and digital input, it can also be used with compatible pulse-output devices beyond water metering, depending on the meter or equipment interface.

Remote or Hard-to-Cable Sites

LoRaWAN® connectivity makes the EM300-DI suitable for locations where running network cabling or relying on Wi-Fi is impractical. This is useful for plant rooms, outbuildings, utility rooms, remote assets, and distributed sites.

---

TITAN Solution Options

Sensor-Only Supply

For customers who already have a Milesight LoRaWAN gateway or existing LoRaWAN network, TITAN can supply the EM300-DI as a standalone pulse counter sensor.

Complete Milesight Monitoring Solution

TITAN can also supply the EM300-DI as part of a complete monitoring solution, including:

• Milesight EM300-DI LoRaWAN pulse counter
• Milesight LoRaWAN gateway
• Milesight IoT Cloud / Development Platform dashboard options
• Device setup and configuration support
• Pulse input configuration guidance
• Cloud dashboard and alert setup support
• Nationwide supply and support across Ireland
