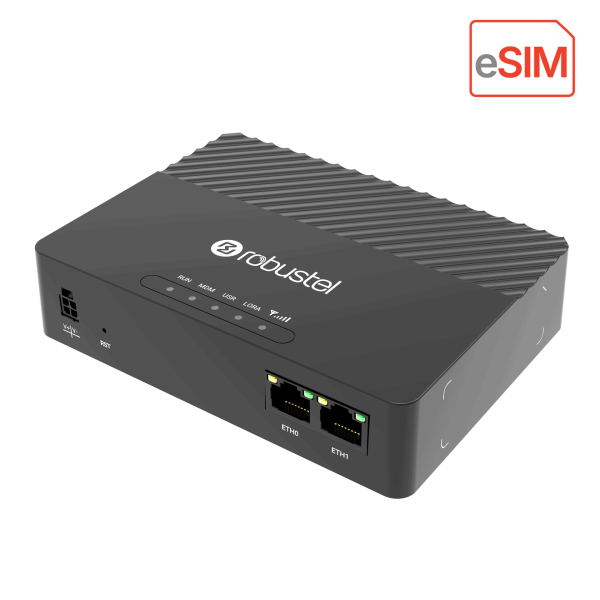

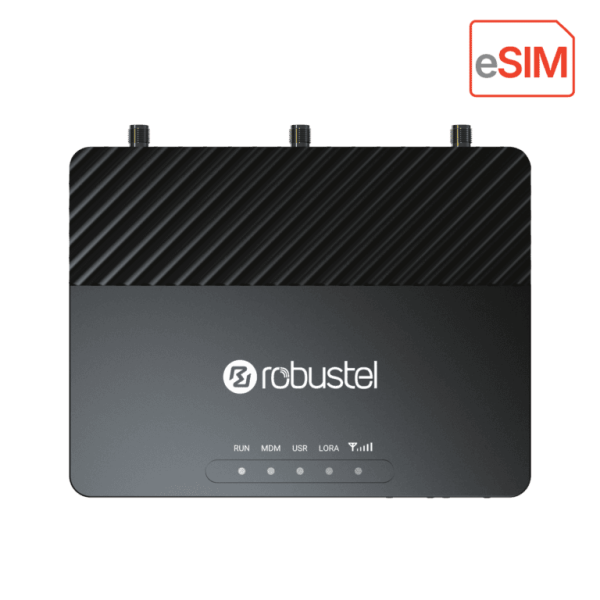

Robustel R1320LGe LoRaWAN Gateway Ireland

Robustel R1320LGe LoRaWAN Gateway for Ireland

The Robustel R1320LGe is a compact industrial LoRaWAN gateway built for reliable packet forwarding at scale. As the official Irish distributor for Robustel, TITAN IoT supplies the R1320LGe to engineers, IT teams and integrators across Ireland who need a low-cost, easy-to-deploy gateway that aggregates LoRaWAN sensor traffic and forwards it to any compatible LNS. It supports EU868 for Ireland alongside AU915, US915 and AS923 frequency plans, with 4G LTE Cat-4, Ethernet (with PoE-PD), and Wi-Fi backhaul options.

IRISH APPLICATIONS

The R1320LGe suits Irish deployments where many low-power sensors need to be aggregated cost-effectively:

• Smart utilities and metering — water, gas, heat and energy meters across residential blocks and commercial districts
• Smart city and municipal IoT — streetlight control, flood sensors, waste-level monitors and parking nodes
• Smart building management — elevator plant rooms, pump rooms, fire system monitoring, energy sub-metering
• Agriculture and environmental monitoring — soil, weather and water-quality sensors across Irish farms
• Projects where cellular backhaul is needed on Vodafone, Three and Eir

LNS COMPATIBILITY

The R1320LGe forwards LoRaWAN node data via standard packet forwarding protocols to any compatible LNS — ChirpStack, The Things Network, LORIOT, Actility or a private network server — without gateway-side reconfiguration.

FREE RCMS CLOUD MANAGEMENT

The R1320LGe is RCMS ready, giving Irish customers free centralised cloud-based monitoring, remote diagnostics, configuration and firmware management across a deployed fleet, with no recurring fees.

ROBUSTOS LINUX PLATFORM

The R1320LGe runs on RobustOS, Robustel’s Linux-based operating system with packet forwarding capabilities and full C/C++ SDK support.

FLEXIBLE BACKHAUL — 4G, ETHERNET AND PoE-PD

Three backhaul options adapt to whatever infrastructure is available at the site: 4G LTE Cat-4 where wired infrastructure isn’t accessible, Fast Ethernet directly to an existing LAN, and PoE-PD (802.3at) on ETH0 to draw power from a PoE switch — useful in comms rooms, distribution cabinets and riser spaces with limited power outlets. Dual SIM support (one MFF2 eSIM + one Mini SIM 2FF) simplifies cellular provisioning across multi-site deployments.

RECOMMENDED ANTENNAS

For better performance and easier project specification, pair the R1320LGe with:

• Poynting PUCK-2 — cellular antenna ideal for panel or cabinet installations
• Poynting XPOL-2 — cellular antenna for challenging signal environments
• A dedicated 868 MHz LoRa antenna for the EU868 LoRa interface

KEY FEATURES

• Industrial LoRaWAN packet forwarder gateway with 4G LTE Cat-4 backhaul
• Works across Vodafone, Three and Eir
• EU868 LoRaWAN frequency band for Ireland (also AU915, US915, AS923 variants available)
• 8 LoRa channels simultaneously, +25 dBm transmit power, -140 dBm receive sensitivity
• Forwards to any compatible LNS — ChirpStack, TTN, LORIOT, Actility
• 2 x 10/100 Mbps Ethernet ports, configurable as 2 x LAN or 1 x WAN + 1 x LAN
• PoE-PD (802.3at) on ETH0 — power and data over a single cable
• eSIM + Mini SIM — dual-SIM cellular with remote profile management
• 2.4 GHz Wi-Fi (802.11 b/g/n) with AP and client modes
• RCMS cloud management enabled — free for life
• Operating temperature -20 to +70 °C, IP30
• Mounting options — desktop, wall mount and 35 mm DIN rail

KEY SPECIFICATIONS

• Cellular: 4G LTE Cat-4, 3G, 2G — 1 x Mini SIM (2FF) + 1 x eSIM (MFF2, GSMA SGP.22 compliant)
• Irish network compatibility: Suitable for deployments using Vodafone, Three and Eir
• LoRa: EU868 (also AU915, US915, AS923 variants); 8 channels; +25 dBm TX; -140 dBm RX
• Ethernet: 2 x 10/100 Mbps, configurable as 2 x LAN or 1 x WAN + 1 x LAN
• PoE input: 802.3at PD on ETH0 (42.5–57.0 V)
• Wi-Fi: 802.11 b/g/n (2.4 GHz), 2×2 MIMO, WPA/WPA2/WPA3
• Antenna connectors: Cellular SMA-K, LoRa RP-SMA-K, Wi-Fi RP-SMA-K
• VPN: IPsec, OpenVPN, GRE, WireGuard, optional DMVPN
• Power input: 9–36 V DC or PoE-PD 42.5–57.0 V
• Operating temperature: -20 to +70 °C
• Ingress protection: IP30
• Housing: Plastic, <230 g
• Dimensions: 31 x 98 x 129 mm
• Mounting: Desktop, wall mount, 35 mm DIN rail
• Certifications: CE, UKCA (in progress)

Note: The R1320LGe is currently in pre-production. Specifications are subject to minor change until release. Contact TITAN IoT for availability and lead times.

FREQUENTLY ASKED QUESTIONS

Does the R1320LGe work on Irish networks?
Yes — the EU variant (R1320LGe-BAZB-4L-A12EU) is supplied for use on Vodafone, Three and Eir, with EU868 LoRa for Ireland.

What LoRaWAN Network Servers does it work with?
The R1320LGe is a packet forwarder — it forwards LoRa data to any compatible external LNS via standard protocols, including ChirpStack, The Things Network, LORIOT, Actility and private network servers.

What mounting options does the R1320LGe support?
Desktop, wall mount and 35 mm DIN rail.

Can I get technical support in Ireland?
Yes — TITAN IoT in Galway provides local pre-sales, technical and post-sales support. Call +353 91 757500 or request a quote through the website.
