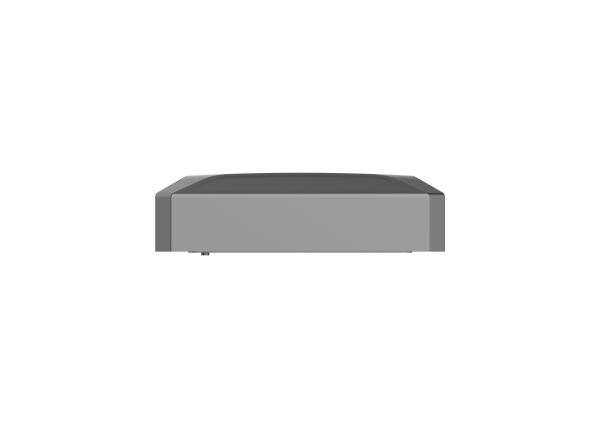

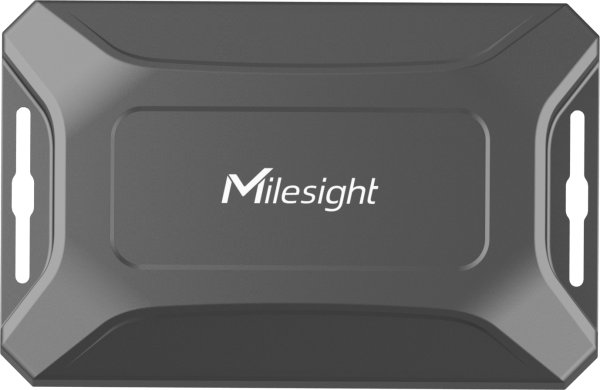

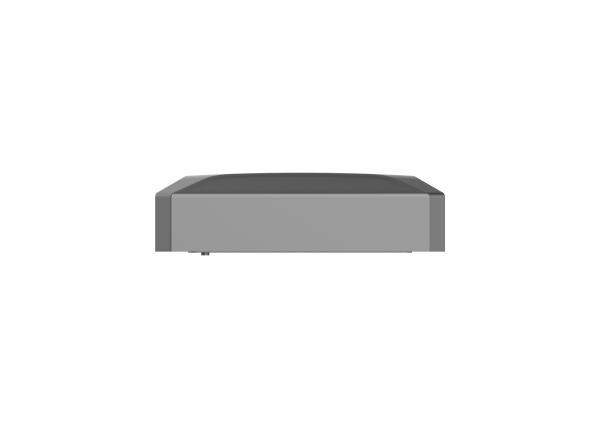

Milesight AT101 LoRaWAN Asset Tracker for Outdoor Equipment & Mobile Assets

The Milesight AT101 is a professional LoRaWAN® outdoor asset tracker designed to help organisations locate, protect and manage mobile or remote assets. It uses GNSS positioning together with Wi-Fi AP MAC address scanning to provide location data, including support for environments where GNSS performance may be limited.

For TITAN customers in Ireland, the AT101 is suitable for facilities teams, construction companies, farms, logistics operators, public sector sites, estates, campuses, equipment owners and managed IoT deployments that need better visibility of valuable assets.

The AT101 can report location and status data over LoRaWAN to a gateway, network server, cloud platform or monitoring dashboard, helping teams reduce manual checks, improve asset awareness and respond faster when equipment is moved unexpectedly.

---

Ideal for Facilities, Equipment & Fleet Asset Monitoring

The AT101 is particularly useful where assets are mobile, shared across sites, parked outdoors or difficult to monitor manually.

Typical Irish use cases include:

• Facilities management asset tracking
• Outdoor equipment monitoring
• Construction plant and tool tracking
• Trailer and mobile asset visibility
• Bin, skip and container tracking
• Farm equipment monitoring
• Golf cart and campus vehicle tracking
• Warehouse yard asset tracking
• Public sector equipment monitoring
• Utility and service asset tracking
• Logistics and depot visibility
• Anti-theft and movement awareness
• Multi-site managed IoT tracking projects

Milesight lists example AT101 applications including livestock farming, patrol cars, construction sites, warehouses, construction bins and golf carts.

---

GNSS & Wi-Fi Positioning

The AT101 combines multiple positioning methods for asset visibility. Milesight states that the device uses GPS, GLONASS, Galileo and BeiDou positioning systems simultaneously, with support for Wi-Fi AP MAC address scanning to assist positioning in areas with poor GNSS signal.

This makes the AT101 suitable for mixed environments such as yards, depots, farms, campuses, warehouses and construction sites where assets may move between open outdoor areas and signal-challenged zones.

---

Motion, Periodic & Timing Modes

The AT101 supports three main work modes for different tracking requirements:

• Motion Mode for stop/move tracking and movement notifications
• Periodic Mode for regular location reports at configured intervals
• Timing Mode for fixed reporting times, with up to five timer points

Milesight lists periodic reporting intervals from 1 to 1440 minutes, allowing deployments to balance tracking frequency with battery life.

For facilities and asset management projects, this flexibility helps match the reporting behaviour to the value, risk and movement pattern of the asset being monitored.

---

Geofencing, Tilt & Tamper Awareness

The AT101 supports geofencing for asset protection, helping customers identify when an asset moves outside a defined area. It also includes tilt detection, allowing alerts based on a change in the device’s relative surface angle.

Milesight also lists a tamper button, data storage, data retransmission and data retrievability as advanced features, supporting better operational visibility for managed tracking projects.

These features are useful for asset protection, equipment misuse detection, movement alerts and audit trails.

---

Built for Outdoor Environments

The Milesight AT101 is designed for demanding outdoor asset tracking use. Milesight lists the device with:

• IP67 ingress protection
• IK09 impact protection
• PC housing
• Operating temperature from -30°C to +70°C
• 0% to 95% RH non-condensing

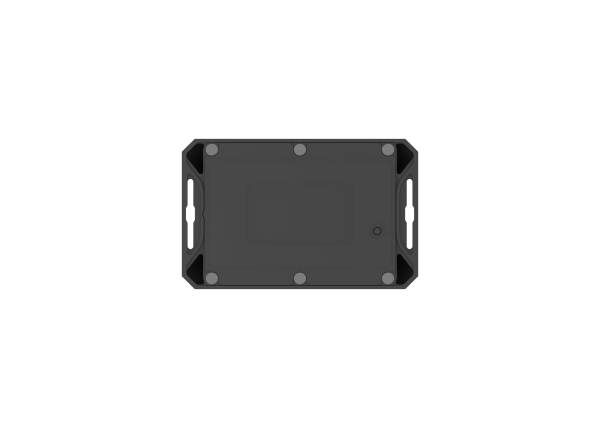

• Wall screw, 3M tape or cable-tie mounting

The device dimensions are 110 × 70 × 30 mm, with a listed weight of 202 g including batteries.

This makes the AT101 suitable for outdoor equipment, site assets, farm assets, bins, trailers and other mobile property requiring rugged LoRaWAN tracking.

---

Long Battery Life

The AT101 uses 4 × 2700 mAh ER14505 Li-SOCl₂ replaceable batteries. Milesight lists battery life of over 15 years with twice-daily location updates, over 8 years with ten daily location updates, and over 4 years with hourly location updates, tested under laboratory conditions at 25°C.

This long-life design is useful for low-maintenance asset tracking projects where frequent battery replacement would be inconvenient or expensive.

---

LoRaWAN Wireless Deployment

The AT101 communicates using LoRaWAN® and supports OTAA/ABP Class A operation. Milesight states that LoRaWAN transmission range can reach up to 2 km in urban areas and 15 km in rural areas, depending on deployment conditions.

For Irish deployments, the correct regional variant should be confirmed before ordering, typically AT101-868M for EU868 / Ireland projects.

The AT101 can be deployed with Milesight LoRaWAN gateways such as the Milesight UG65 Indoor LoRaWAN Gateway or a suitable outdoor gateway depending on site layout, coverage and asset movement patterns.

---

Compatible LoRaWAN Gateways & Network Servers

Milesight states that the AT101 works with Milesight LoRaWAN gateways and mainstream LoRaWAN network servers.

Common deployment options may include:

• Milesight UG65 Indoor LoRaWAN Gateway

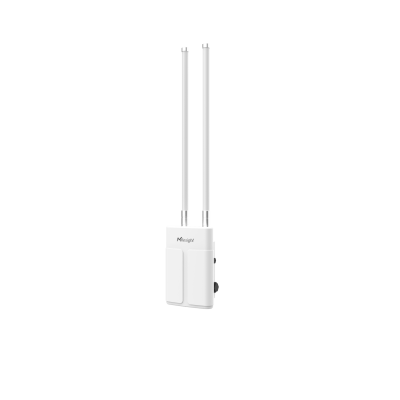

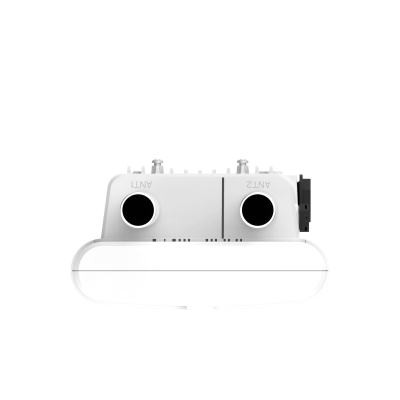

• Milesight UG67 Outdoor LoRaWAN Gateway
• The Things Stack / The Things Industries
• ChirpStack
• AWS IoT Core for LoRaWAN
• Actility
• LORIOT
• Netmore
• Orbiwise
• Milesight IoT Cloud
• Milesight Development Platform
• Milesight gateways with built-in network server support

For asset tracking projects, TITAN can help align the AT101 with the right gateway, network server, coverage plan and reporting workflow.

---

TITAN Supply, Configuration & Online Support

TITAN supplies the Milesight AT101 across Ireland and can assist with:

• Product supply
• LoRaWAN configuration
• Online configuration support
• Remote technical assistance
• Gateway and tracker setup guidance
• Pairing with Milesight LoRaWAN gateways
• LoRaWAN network server setup advice
• Asset tracking project guidance
• Facilities, equipment, yard and farm tracking deployment support

Contact TITAN to request a quote for the Milesight AT101 LoRaWAN Outdoor Asset Tracker.

Key Features

• LoRaWAN® outdoor asset tracker
• GNSS positioning using GPS, GLONASS, Galileo and BeiDou
• Wi-Fi AP MAC address scanning for assisted positioning
• GNSS position accuracy: 5 m CEP in direct line of sight
• Motion, periodic and timing tracking modes
• Periodic reporting interval from 1 to 1440 minutes
• Geofencing support
• Tilt detection and tilt threshold alarm

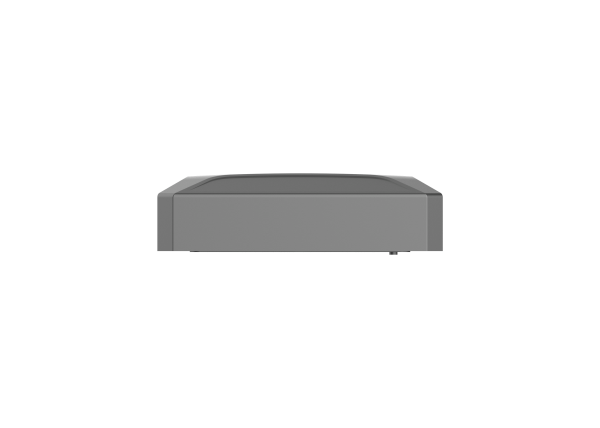

• Tamper button / tamper alarm support
• Built-in temperature sensor
• Temperature range: -40°C to +125°C
• Data storage, retransmission and retrievability
• NFC and Bluetooth 5.3 configuration
• LoRaWAN OTAA/ABP Class A
• IP67 outdoor-rated enclosure
• IK09 impact resistance
• 4 × 2700 mAh ER14505 Li-SOCl₂ replaceable batteries
• Over 15 years battery life with twice-daily updates
• Wall screw, 3M tape or cable-tie mounting
• Compatible with standard LoRaWAN gateways and network servers
• Suitable for facilities management, equipment tracking, construction, logistics, agriculture and outdoor asset monitoring
