HW Group Perseus Industrial is a scalable DIN rail monitoring and control platform for technical rooms, plant, telecom cabinets and remote sites. Each unit brings sensors, dry contacts, relays and third-party Modbus meters into one device with local logic, alerting and open integration.
Three models, one platform:

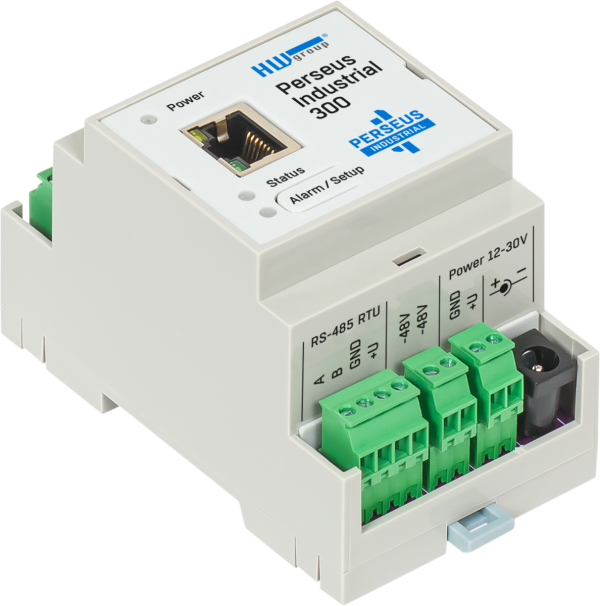

| 300 | 310 | 315 | |
|---|---|---|---|
| Network | LAN | LAN | LAN + LTE |
| Digital inputs (S0 counters) | 3 | 5 | 5 |
| Relay outputs | 1 | 2 | 2 |

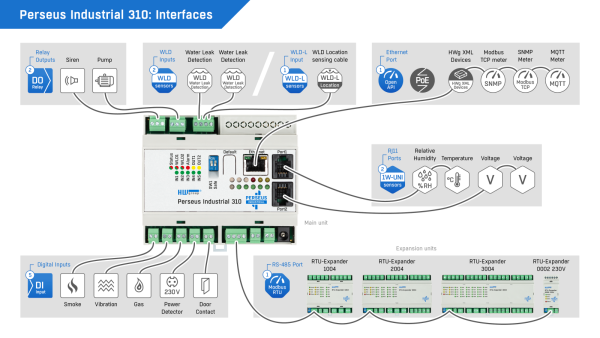

| Sensor ports | RS-485 (Modbus RTU) | 2× RJ11 1-Wire UNI + RS-485 | 2× RJ11 1-Wire UNI + RS-485 |
| Water leak port | — | WLD-L | WLD-L |

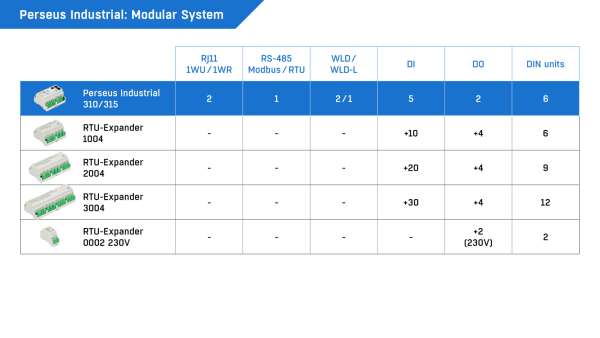

- Scales on the rail. Add RTU-Expander modules (10, 20 or 30 digital inputs with 4 relays each) as I/O needs grow.

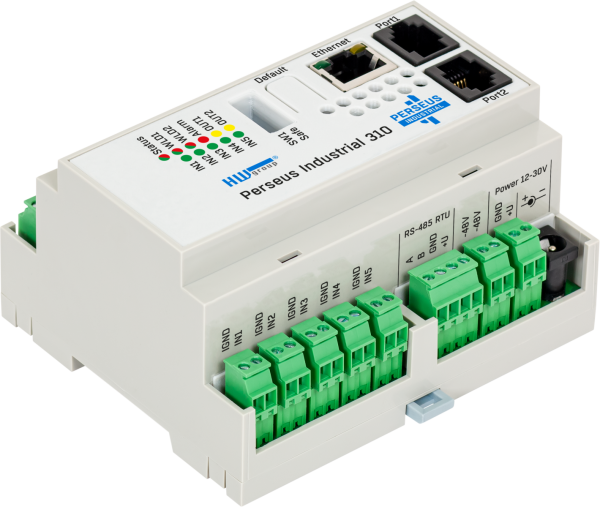

- Locates leaks, not just detects them. The 310 and 315 carry a green 4-pin WLD-L port for the WLD-Location Cable L, or two standard WLD A/B zones.

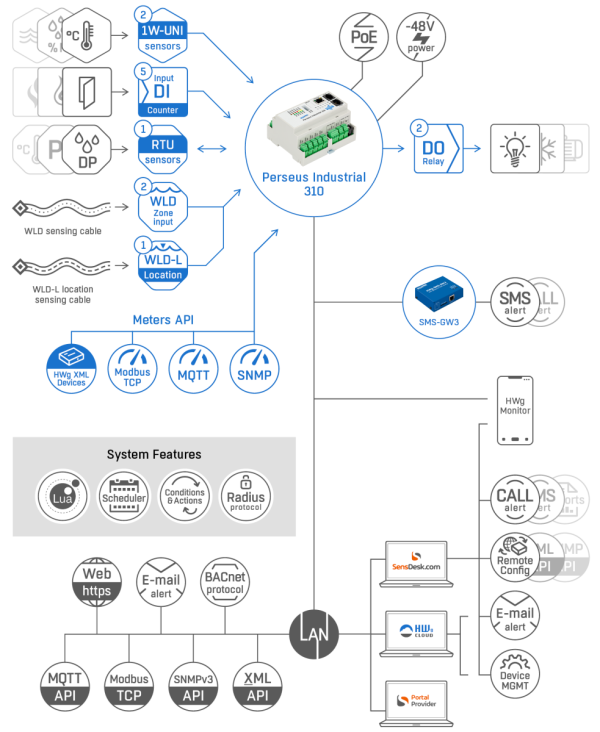

- Fits your system. SNMP v1/v3, MQTT, Modbus/TCP, BACnet/TCP and XML, with Lua scripting, a scheduler and the Meters API to pull values from other HW Group units on the LAN.
DC or PoE powered. Connects to the SensDesk portal for long-term history, PDF reports and SMS or voice alerts; the 315’s LTE modem also acts as an SMS gateway for other HW Group devices on site.
Available as: Perseus Industrial 300, 310 or 315. Tell us which model when you enquire, or ask us to spec it with you.
Datasheet
Perseus Industrial 310 flyer (PDF) · Perseus Industrial 315 flyer (PDF) · Perseus manual (PDF)
