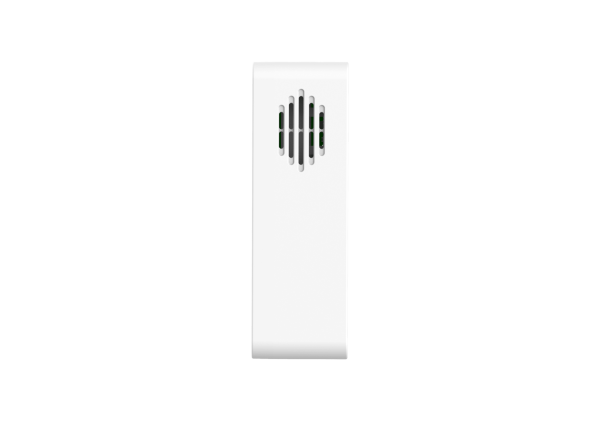

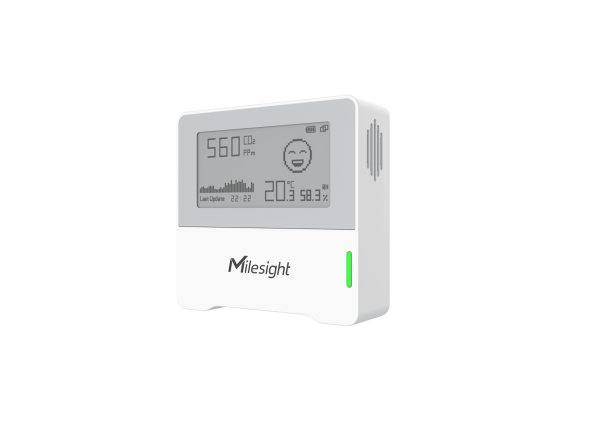

Milesight AM103 LoRaWAN Sensor for Indoor Air Quality Monitoring

The Milesight AM103 is a compact indoor ambience monitoring sensor designed to measure temperature, humidity and CO₂ in real time. These readings can be displayed locally on the device’s E-Ink screen and transmitted wirelessly over LoRaWAN® to a gateway, network server, cloud platform or monitoring dashboard.

For facilities managers, building operators and IoT solution providers, the AM103 provides a practical way to monitor indoor comfort and air quality across buildings without relying on Wi-Fi at every sensor location.

TITAN supplies the Milesight AM103 for Irish facilities, smart buildings, schools, offices, warehouses, healthcare sites, public sector buildings and managed IoT deployments.

Ideal for Facilities Management & Monitoring

The AM103 is particularly suitable for facilities management and indoor environmental monitoring where organisations need better visibility of comfort conditions, ventilation performance and building usage.

Typical Irish use cases include:

Indoor air quality monitoring
CO₂ monitoring
Temperature and humidity monitoring
Facilities management dashboards
Office comfort monitoring
Classroom and campus monitoring
Healthcare and waiting area monitoring
Public sector building monitoring
Retail and hospitality environment monitoring
Smart building monitoring
HVAC performance visibility
Remote monitoring across multi-site estates

Milesight lists suitable environments for the AM103 including offices, stores, classrooms and hospitals, making it a good fit for Irish commercial and public sector monitoring projects.

3-in-1 IAQ Monitoring

The AM103 measures three core indoor environmental parameters:

CO₂
Temperature
Humidity

Milesight describes the AM103/AM103L as a cost-effective 3-in-1 IAQ sensor for CO₂, temperature and humidity monitoring, with visual indicators, wireless deployment and long battery performance.

This makes it useful for understanding indoor comfort, ventilation patterns and environmental conditions across occupied spaces.

CO₂ Monitoring for Ventilation Awareness

The AM103 uses an NDIR CO₂ sensor with a measurement range of 400 to 5000 ppm, 1 ppm resolution and stated accuracy of ±30 ppm + 3% of reading from 0°C to 50°C.

CO₂ monitoring can help facilities teams understand when indoor spaces may need improved ventilation, especially in offices, meeting rooms, classrooms, shared workspaces and public buildings.

E-Ink Screen & Visual Status Indicator

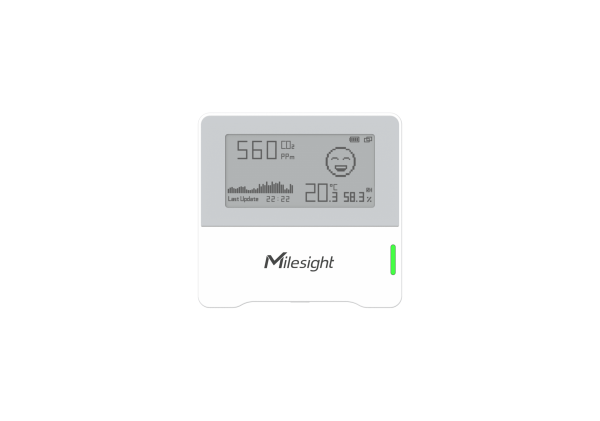

The AM103 includes a 2.13-inch black and white E-Ink screen, allowing local users to view readings directly on the device. It also includes a traffic light status indicator for multi-level CO₂ threshold alerts, helping users quickly understand indoor conditions without opening a dashboard.

This is useful for schools, offices, reception areas and shared spaces where occupants or facilities teams may need quick local visibility.

LoRaWAN Wireless Deployment

The AM103 communicates using LoRaWAN® with an internal antenna and supports OTAA/ABP Class A operation. Milesight’s datasheet lists frequency support including EU868, making it suitable for Irish and European LoRaWAN deployments when the correct regional model is selected.

For TITAN customers, the AM103 can be deployed with Milesight LoRaWAN gateways such as the Milesight UG65 Indoor LoRaWAN Gateway for facilities monitoring and smart building projects.

Long Battery Life

The AM103 uses 2 × 2700 mAh ER14505 Li-SOCl₂ replaceable batteries. Milesight lists AM103 battery life at around 4.5 years at SF7 on EU868/US915, around 3 years at SF10 on EU868, and around 2.3 years at SF10 on US915, based on a 10-minute interval at 25°C under laboratory conditions.

This makes the sensor suitable for long-term indoor monitoring with reduced maintenance.

Compatible LoRaWAN Gateways & Network Servers

The AM103 is compliant with standard LoRaWAN® gateways and network servers and can be managed through Milesight platforms such as Milesight IoT Cloud and Milesight Development Platform.

Common deployment options may include:

Milesight UG65 Indoor LoRaWAN Gateway
Milesight UG67 Outdoor LoRaWAN Gateway
The Things Stack / The Things Industries
ChirpStack
AWS IoT Core for LoRaWAN
Actility
LORIOT
Netmore
Orbiwise
Milesight IoT Cloud
Milesight Development Platform
Milesight gateways with built-in network server support

The Things Network device repository also lists the Milesight AM103 as a LoRaWAN indoor air quality sensor with battery, temperature, humidity and CO₂ sensing.

TITAN Supply, Configuration & Online Support

TITAN supplies the Milesight AM103 across Ireland and can assist with:

Product supply
LoRaWAN configuration
Online configuration support
Remote technical assistance
Gateway and sensor setup guidance
Pairing with Milesight UG65 gateways
Indoor air quality monitoring project advice
Facilities monitoring and smart building deployment support

Contact TITAN to request a quote for the Milesight AM103 LoRaWAN Indoor Air Quality Sensor.

Key Features

LoRaWAN® indoor air quality sensor
Measures CO₂, temperature and humidity
NDIR CO₂ sensor
CO₂ range: 400 to 5000 ppm
Temperature range: -20°C to 60°C
Humidity range: 0% to 100% RH
2.13-inch E-Ink screen
Traffic light CO₂ status indicator
Comfort-level visual display
Built-in NFC for easy configuration
Supports threshold alarms
Local data storage and retransmission support
LoRaWAN OTAA/ABP Class A
Internal antenna
Replaceable long-life batteries

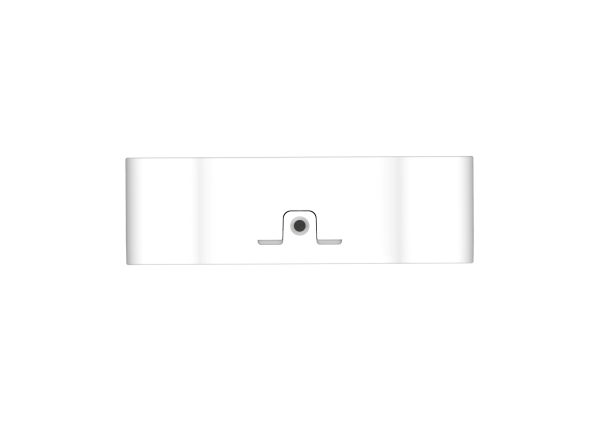

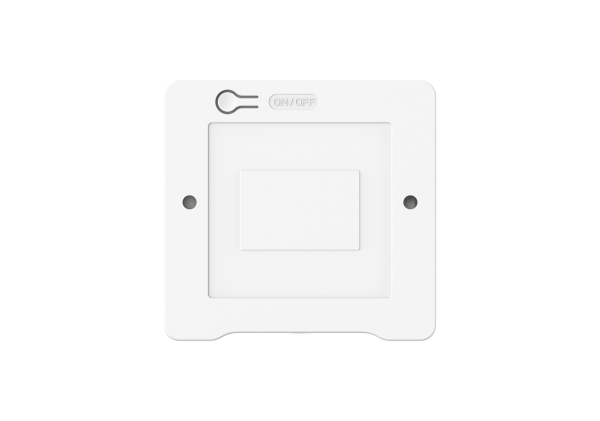

Wall mounting via 3M tape or screws
IP30 indoor enclosure
Compatible with standard LoRaWAN gateways and network servers
Suitable for facilities management, smart buildings, offices, schools, healthcare and public sector buildings
