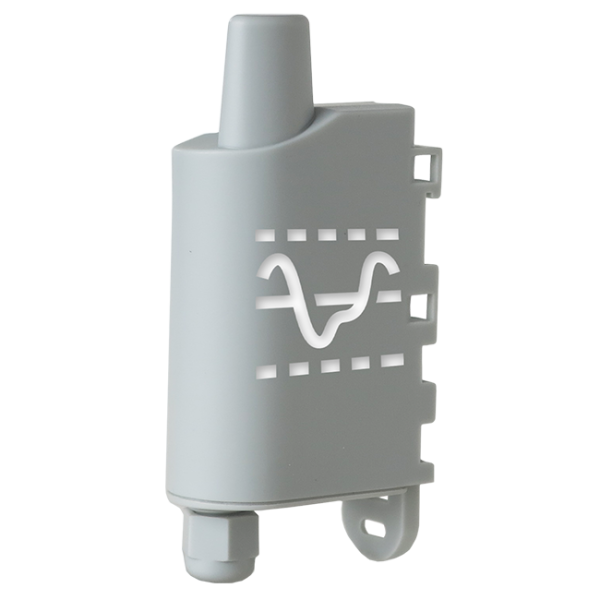

The Adeunis ANALOG turns any 0-10 V or 4-20 mA sensor into a wireless LoRaWAN one. Connect pressure transmitters, level probes, flow meters, current clamps or existing building sensors and the readings come back without new cabling.
It has two analog inputs, each configured independently as 0-10 V or 4-20 mA, plus two digital inputs. It sends periodic readings and alarms on high or low thresholds, with logging of up to 24 samples per frame and a minimum scan period of 30 seconds. Two versions: ANALOG runs from a replaceable 2600 mAh battery; ANALOG PWR runs from a 6-24 V supply. The IP67 housing mounts on DIN rail, tube, wall or collar.
| Version | Part | Power |
|---|---|---|
| ANALOG | ARF8190BA | Replaceable battery |
| ANALOG PWR | ARF8200AA | External 6-24 V |
