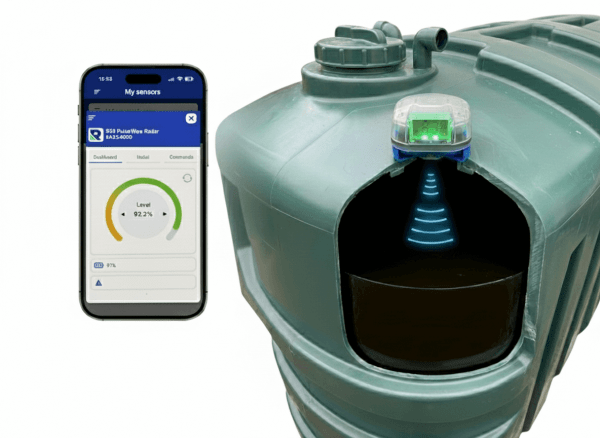

TEK 880 Cellular Radar Sensor with ATEX

Remote tank and water level monitoring with cellular connectivity across Ireland. The TEK 880 radar sensor provides accurate liquid level measurements with programmable alerts for high/low levels and fill/drain rates.

Up to 10-year battery life, works on Irish NB-IoT/CAT-M1 networks. ATEX and Class 1 Division 1 certified for hazardous locations.

Irish stock and technical support from TITAN IoT.

Works with any tank level monitoring system.

◊ DATASHEET ◊

◊ TEK880 Installation Guide ◊

The TEK 880 is an intrinsically safe cellular radar level sensor (ATEX / UL 913 Class 1 Division 1 Zone 0 certified) designed for continuous liquid level monitoring in hazardous and non-hazardous environments. Using radar technology, it accurately measures fluid levels and communicates data to remote servers via CAT-M1/NB-IoT cellular networks.

Specifically designed as a low-profile sensor, the TEK 880 can be installed invasively or non-invasively depending on your tank configuration. Perfect for fuel distributors, chemical storage, water utilities, and industrial facilities requiring reliable remote monitoring across Ireland.

Applications:

Remote liquid level monitoring
• Chemicals
• Water
• Additives
• Lubricants
• Petroleum
• Diesel fuel
• Motor oil
• Hydraulic fluid
• Waste Oil
• Other hazardous/non-hazardous liquid

Benefits:

Invasive or Non- invasive tank monitoring
• Up to 10 year battery life – ATEX data logger
• Accurate, reliable level reporting to server monitoring
application
• Spot and continuous inventory management
• Configurable reporting schedule and alarms
• Highly configurable server reporting interval from every 2
hours to once per month
• 28 slot logger with configurable logging interval
• Programmable alarms
– High level
– Low levels
– Rate of level change (fill or drain)
• GPS / GLONASS Global Positioning
• Bluetooth BLE for installation and local readings
• IP68 protected
• FCC Approved
• Temperature compensated

Liquid/Solid Level Sensor

We have over 5 Million devices in the field. Check out our use cases or talk to us today to find the level sensor / remote tank gauge that suits your needs.
