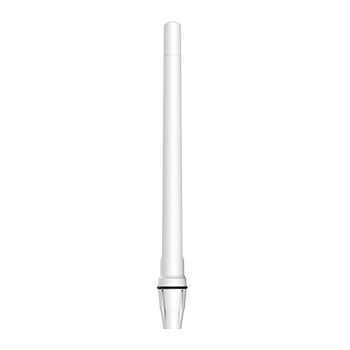

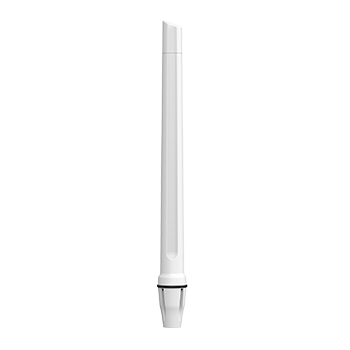

The Poynting OMNI-402-5G is the marine 2×2 antenna: two vertically separated elements in one saltwater-proof radome, so a two-port 4G or 5G router on a boat, ferry or harbour building needs one mast and one mount. It is the marine twin of the OMNI-600-5G.
Coverage is 410–4200 MHz at 5.8 dBi, including 3.6 GHz 5G and the 410–470 MHz private LTE range. Marine grade: IP68, saltwater and UV protected, 1-inch 14 TPI marine adapter included, plus pole or wall bracket; optional 316 stainless BRKT-37 flat mount. Rated for −40 °C to +80 °C.
Twin 2 m HDF-195 cables with SMA male connectors plug straight into the router.
Choose the model
| Model | Connector | Cable | Order code |
|---|---|---|---|
| OMNI-402-5G | SMA male × 2 | Twin HDF-195, 2 m | A-OMNI-0402-V2-01 |
Which model?
- OMNI-402-5G: two-port routers such as the Robustel R1510 or Teltonika RUT956.
- 4×4 router? The OMNI-414.
- Maximum reach? Two OMNI-493 at 8 dBi.
Tell us the router and the site and we’ll confirm the model, cable and mounting. Ask us to spec it, or read how to choose a 4G or 5G antenna.
