HW Group WLD-ECHO Water Leak Detector with Relay Output

2 WLD zones, sensing cable up to 185 m per zone
Sounder, visual alarm and LED status
1 latching dry-contact relay output, 24 V DC / 500 mA
2× AA batteries (2–3 years) or 12 V DC
Cable-fault and low-battery warning · IP23 · wall or desk

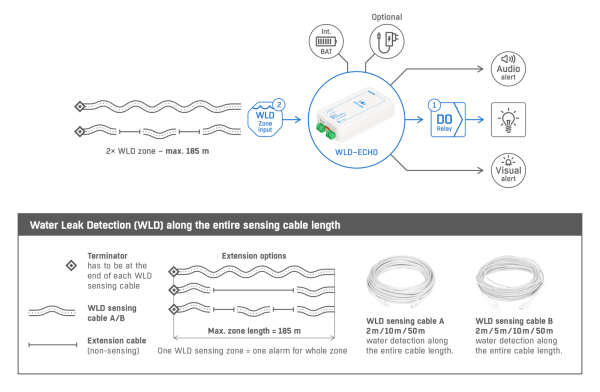

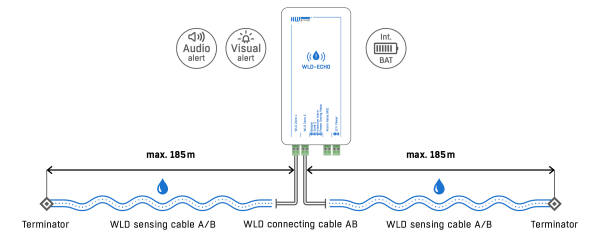

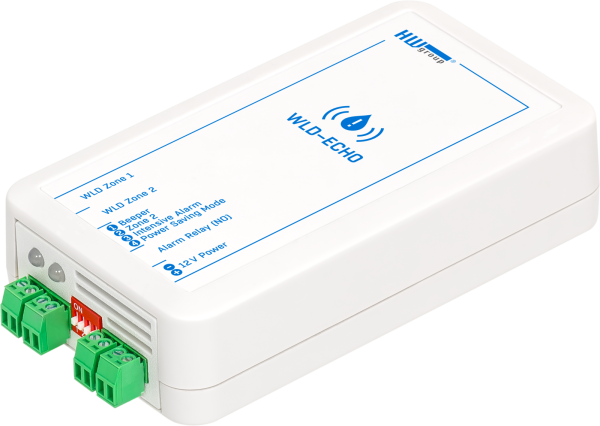

The HW Group WLD-ECHO is a compact, standalone water leak detector for sites that need a dependable local alarm and a clean contact into an existing system. It takes two sensing-cable zones, each up to 185 m, and a few drops of water or other conductive liquid anywhere along the cable trigger the alarm.

Works on its own. Built-in sounder and visual alarm, LED status for OK, leak and cable fault, plus a low-battery warning.
Wires into anything. One latching dry-contact relay output (24 V DC / 500 mA) connects to an intruder alarm panel, a BMS or a monitoring unit’s digital input.
Power where it suits. Two AA alkaline batteries (2–3 years) or a 12 V DC supply.

It also reports a disconnected or damaged sensing cable, and zone 2 can be switched off when not in use. Pair it with HW Group WLD sensing cable A or B, the WLD connecting cable, and Poro Tape or a cover strip for installation. For networked alerts and logging, take the relay into a monitoring unit such as the Perseus Monitoring 145.

Datasheet

WLD-ECHO flyer (PDF) · User manual (PDF)

See it in action

Measure	Water Leak
Interfaces	DO
Power	Battery, External AC/DC
Mounting	Desk, Wall
Inputs	2x WLD zone (sensing cable A/B), up to 185 m per zone
Outputs	1x latching relay, dry contact, 24 V DC / 500 mA
Local Alarm	Sounder, visual alarm, LED status
Power Supply	2x AA alkaline (2-3 years) or 12 V DC
Operating Temp	-10 to +60 C
IP Rating	IP23
Warranty	24 months
