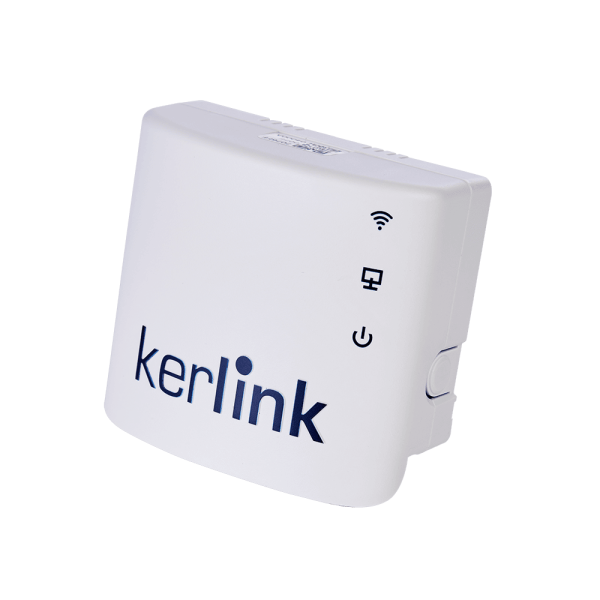

The Kerlink Wirnet iZeptoCell is a palm-sized indoor LoRaWAN gateway (76 x 68.5 x 32 mm) for filling coverage in offices, retail units, car parks and plant rooms, or for small sites that need their own gateway. It powers from USB and can mount directly on its plug-in supply.
Two versions are available: the Ethernet version (PDTIOT-IZEE800) for sites with a network port, and the Cellular version (PDTIOT-IZEC800) with LTE-M backhaul on a remotely configurable eSIM, for sites with no wired network at all. Both use the Semtech CoreCell design with 8 receive channels, -140 dBm sensitivity, an integrated LoRa antenna and zero-touch provisioning, and draw about 1 W.
| Version | Backhaul | Part number |
|---|---|---|
| Ethernet | 10/100 Ethernet | PDTIOT-IZEE800 |
| Cellular | LTE-M (eSIM) | PDTIOT-IZEC800 |
Tell us which version when you ask for a quote. Supplied and staged by TITAN in Galway. Datasheet available on request.
