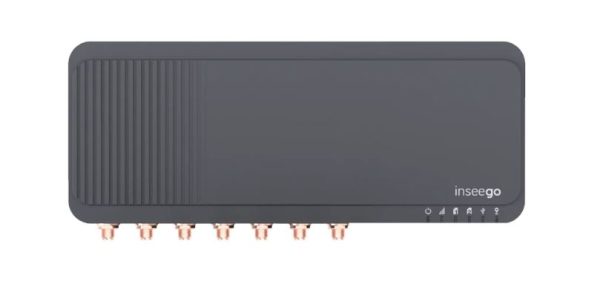

Insegoo s2000e 5G industrial router
The S2000e supports public or private networks and  It connects to routing systems or remote endpoints with Ethernet or USB.
Features
- The only 5G gateway that supports simultaneous 4×4 MIMO LTE + 5G
- Purpose-built design with flexible antenna and mounting options
- Enterprise-grade device security, third-party penetration testing, content filtering, and more
- Easy-to-use Inseego Mobile™ app to optimize placement, simplify installation process, and manage device settings
- Cloud API support through Inseego Connect Advanced and Inseego 5G SD EDGE
Inseego Wavemaker™ 5G industrial gateway S2000e
Versatile, scalable, secure, and high-performance 5G.
Ultra-reliable global connectivity
The S2000e supports public or private networks and operates on
numerous service provider networks around the world. It connects to
routing systems or remote endpoints with Ethernet or USB. Also the
S2000e supports 4×4 LTE + 5G or 4×4 5G + LTE as well as 4×4 LTE or 4×4
5G so you can mantain a dependable connection compared to other
devices. With six cellular ports, each port is tuned to optimize efficiency
and return loss to provide the best possible RF.
24/7 Continuous multi-gigabit connection
Get connected and stay connected. Advanced thermal, WAN and
dual SIM management with active keep-alive, ensures your business is
always connected.
Millisecond latency
Ultra-low latency, unlocked by 5G commercial or private networking,
for real time data access and management.
Industrial-grade hardware
Proprietary thermal design allows for use in a server room, harsh
factory environment or even outdoor enclosures while operating at
multi-gigabit speeds. Mounting options vary from desktop to wall,
rack, pole or DIN rail install.
Remote management
Convenient remote device management capabilities for a single device,
plus in-depth remote device management capabilities and diagnostics
for multiple devices from a single dashboard with Inseego ConnectTM.
| Network technology: |
| 5G Sub-6 only or Sub-6 + mmW with 4G LTE (Cat 22) fallback |
| SA & NSA |
| Dynamic Spectrum Sharing (DSS) |
| Data speeds: |
| 4.2 Gbps Download /1.3 Gbps Upload* |
| Ports: |
| 1x 5 Gb Ethernet RJ45 with Power over Ethernet |
| 1x USB 3.1 Type C (USB Tethering, USB WAN Modem) 2.7 Gbps max throughput |
| 6x Female SMA for Cellular |
| 1x Female SMA for GNSS |
| 1x 4 Pin Power and 1/O |
| Dimensions & weight: |
| Height: |
| 7.8 inches (200 mm) |
| Width: |
| 3.1 inches (80 mm) |
| Depth: |
| 1.7 inches (45 mm) |
| Weight: |
| 495 g |
| Operating temperature: |
| -30 °C to 65 °C |
| Security features: |
| Device cybersecurity agent |
| NAT Firewall |
| VPN Pass-Through, open VPN, IPsec VPN |
| Security hardened web interface – TLS, SSL |
| Fully encrypted log files |
| Fully encrypted cloud agent |
| Brand | |
|---|---|
| Cellular |
