The STE2 LITE is a compact monitoring solution from HW group that allows you to monitor up to 4x RJ11 1-Wire sensors via LAN or WiFi. It can be used to measure the temperature in server rooms or warehouses and is supplied with a Temp-1Wire 1m temperature sensor.

  • Compact monitoring solution
  • Can monitor up to 4x RJ11 (1-Wire) sensors
  • Allows measurements to be transmitted via LAN or WiFi
  • Sends alarms when a defined limit is exceeded
  • Is also compatible with the SensDesk.at online portal from HW group
SKU: STE2 LITE Category:

STE2 LITE – Compact monitoring solution from HW group with an RJ11 port for monitoring up to 4x external 1-Wire sensors via LAN or WiFi

The STE2 LITE is a compact monitoring solution for monitoring server rooms, warehouses, data centers, cold storage rooms and the like, which can receive the measurements of up to 4x 1-Wire sensors via the RJ11 connection and transmits the collected data either via Ethernet LAN or WiFi. To use multiple RJ11 sensors, a daisy chain must be created. As soon as one of the values ​​(e.g. temperature, CO2 concentration or humidity) exceeds the defined limits, an alarm is sent via SMS, email, HWg-Push or an online portal (e.g. SensDesk.at) to prevent damage or other problems. The STE2 LITE also supports M2M Open API and is supplied with both a Temp-1Wire 1m temperature sensor and a 5V power supply.

Characteristics

  • Compact monitoring solution
  • Has 1x RJ11 connection for external 1-Wire sensors
  • Can receive readings from up to 4x different sensors
  • Allows the collected data to be transferred via LAN or WiFi
  • Is compatible with SensDesk.at to facilitate monitoring and management of devices
  • Supports M2M Open API communication and can be connected to an SMS gateway (e.g. SMS-GW3)
  • Delivery includes a Temp-1Wire 1m temperature sensor and a 5V power supply with various plugs
  • Alerts can be sent via email, SMS, HWg-Push or an online portal
  • Suitable for monitoring warehouses, data centers and server rooms
  • Has an operating temperature range of -10 °C to 60 °C
  • Size (L x W x H): 6.7 x 6.3 x 2.9 cm

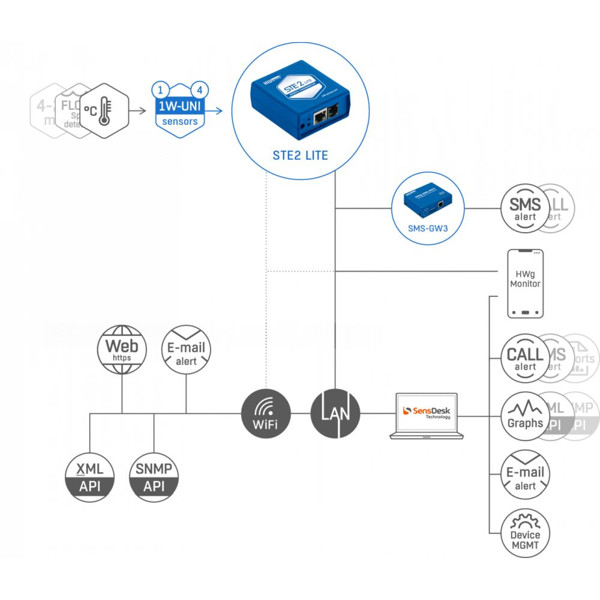

Application diagram

STE2 LITE compact monitoring solution for external 1-Wire sensors from HW group Application diagram

Brand

INTERFACES

, , ,

Platfrom

, , ,

Power

AC/DC power, PoE

TECHNOLOGIES

WiFi
