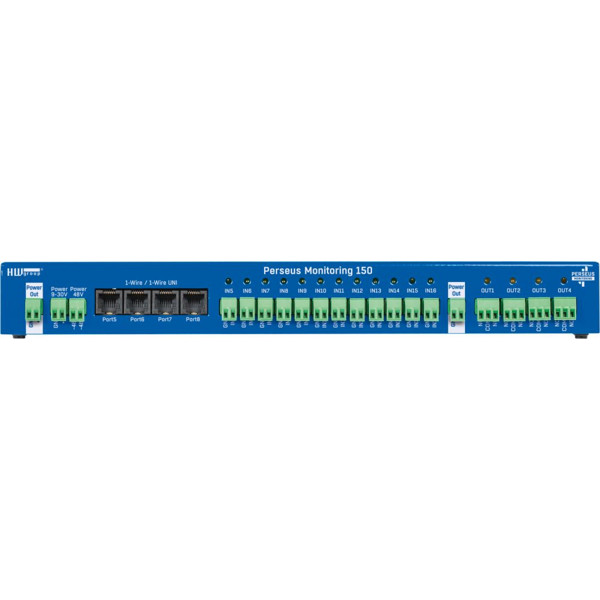

The Perseus Monitoring 150 is a rack monitoring solution from HW group that offers 8x RJ11 (1-Wire/1-Wire UNI) ports, 16x digital inputs (DI), 4x digital relay outputs (DO) as well as an RS-485 interface and a WLD port to facilitate the monitoring of network cabinets.

  • Reliable rack monitoring solution
  • Has 8x RJ11 ports for external 1-Wire/1-Wire UNI sensors
  • Also offers 16x digital inputs and 4x digital relay outputs
  • Also has a WLD port and an RS-485 interface
  • Suitable for use in server rooms and data centers
SKU: Perseus Monitoring 150 Category:

Perseus Monitoring 150 – Rack monitoring solution from HW group with 8x RJ11 connectors, 16x digital inputs (DI) and 4x digital relay outputs (DO)

The Perseus Monitoring 150 is a rack monitoring solution for monitoring server rooms and data centers that not only offers 8x RJ11 connections for 1-Wire/1-Wire UNI sensors, but is also equipped with 16x digital inputs, 4x digital relay outputs, an RS-485 (Modbus RTU) interface and a WLD port. It therefore makes it easier to quickly record both the environmental conditions (e.g. temperature, humidity, etc.) and possible problems (e.g. leaks, fires, etc.) and sends alarms by email or SNMP trap if the recorded values ​​exceed the defined limits. This rack monitoring solution also has an RJ45 LAN port for connecting to other HW group devices, which are handled as external meters using the Meters Open API function. The management of the connected sensors and the clear display of the collected values ​​is made easier via the online port SensDesk.at. The Perseus Monitoring 150 also supports local LUA scripts, RADIUS (IEEE 802.1x) and third-party sensors.

Characteristics

  • Complex rack monitoring solution
  • Has 8x RJ11 connectors for external 1-Wire/1-Wire UNI sensors
  • Allows you to collect information from a maximum of 100 external sensors
  • Has 16x digital dry contact inputs and 4x digital relay outputs
  • Additionally offers a WLD zone connection and an RS-485 Modbus RTU interface
  • Sends alarms via SNMP trap or email as soon as a limit is exceeded
  • Allows access to the recorded values ​​via Open API (XMS, MQTT, XML or Modbus TCP)
  • Is equipped with an RJ45 LAN port (10/100 Mbps) and offers an integrated web server
  • Facilitates monitoring of environmental conditions and detection of problems (e.g. leaks)
  • Power is supplied either via the 9-30 VDC power input, PoE or Telco standard -48 VDC
  • Meters Open API function allows to use the measured values ​​from other HW group devices
  • Suitable for monitoring network cabinets in server rooms and data centers
  • Is compatible with the online portal SensDesk.at and third-party sensors
  • Features a robust IP40 metal housing with a rack mounting bracket
  • Supports RADIUS (IEEE 802.1X authentication) and local LUA scripts
  • Also offers a scheduler based on a local calendar
  • Has an operating temperature range of -30 °C to 60 °C
  • Size (L x W x H): 29.0 x 11.1 x 3.5 cm
  • Weight: approx. 1.12 kg

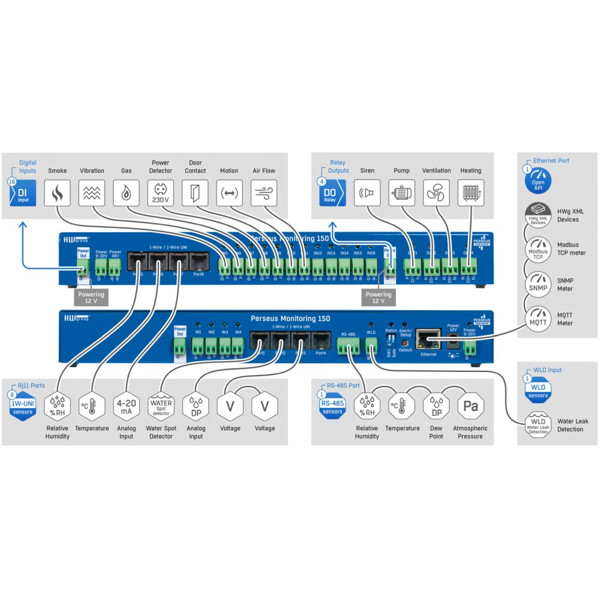

diagram

Perseus Monitoring 150 Rack monitoring solution from HW group Diagram

Brand

INTERFACES

, , ,

Platfrom

, , ,

Power

AC/DC power, PoE

TECHNOLOGIES

WiFi
